Engineers Develop Side-Stacked HBM to Boost Speed, Capacity, and Cooling

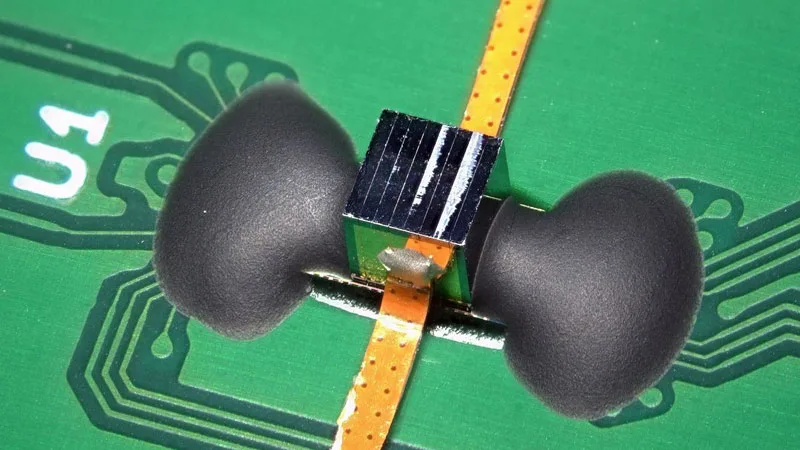

Researchers have introduced an innovative approach to high-bandwidth memory (HBM) design that addresses key challenges in scaling memory performance and efficiency for artificial intelligence (AI) accelerators and graphics processing units (GPUs). Instead of stacking DRAM chips vertically in the traditional manner, this new method involves orienting memory dies on their sides, forming a volumetric assembly of silicon layers.
Revolutionizing Memory Architecture
The conventional HBM design stacks memory dies vertically like a tower, which has been effective for increasing bandwidth and capacity but encounters limitations related to heat dissipation and scaling. By reorienting the memory chips on their edges, the engineers create a more compact three-dimensional block. This sideways stacking configuration enhances memory throughput and expands capacity while simultaneously improving thermal efficiency.
Effective heat management is a critical concern in high-performance computing hardware, especially as AI workloads demand more memory bandwidth and density. The side-stacked layout increases the surface area available for heat dissipation, reducing thermal hotspots and enabling the memory stack to operate at lower temperatures.
In addition to thermal benefits, the new design also addresses bandwidth constraints. Greater interconnect density between the memory layers in the volumetric block facilitates faster data transfer speeds, which is essential for applications that rely on swift memory access such as machine learning training and inference.
This architectural shift also supports scaling the memory arrays without the typical trade-offs associated with increased power consumption or heat generation. The method holds promise for next-generation accelerators and GPUs where maximizing both capacity and performance is critical in compact form factors.
While specific implementation details and commercial availability remain forthcoming, this advancement in HBM technology marks a significant step toward overcoming current bottlenecks in memory systems deployed in advanced computing environments.
Industry analysts suggest that adopting such architectural innovations could become a vital component in meeting the growing demands of AI workloads, as well as enhancing the efficiency and lifespan of hardware components in data centers.
A new side-stacked HBM architecture enhances memory bandwidth, capacity, and thermal management for AI accelerators and GPUs.
